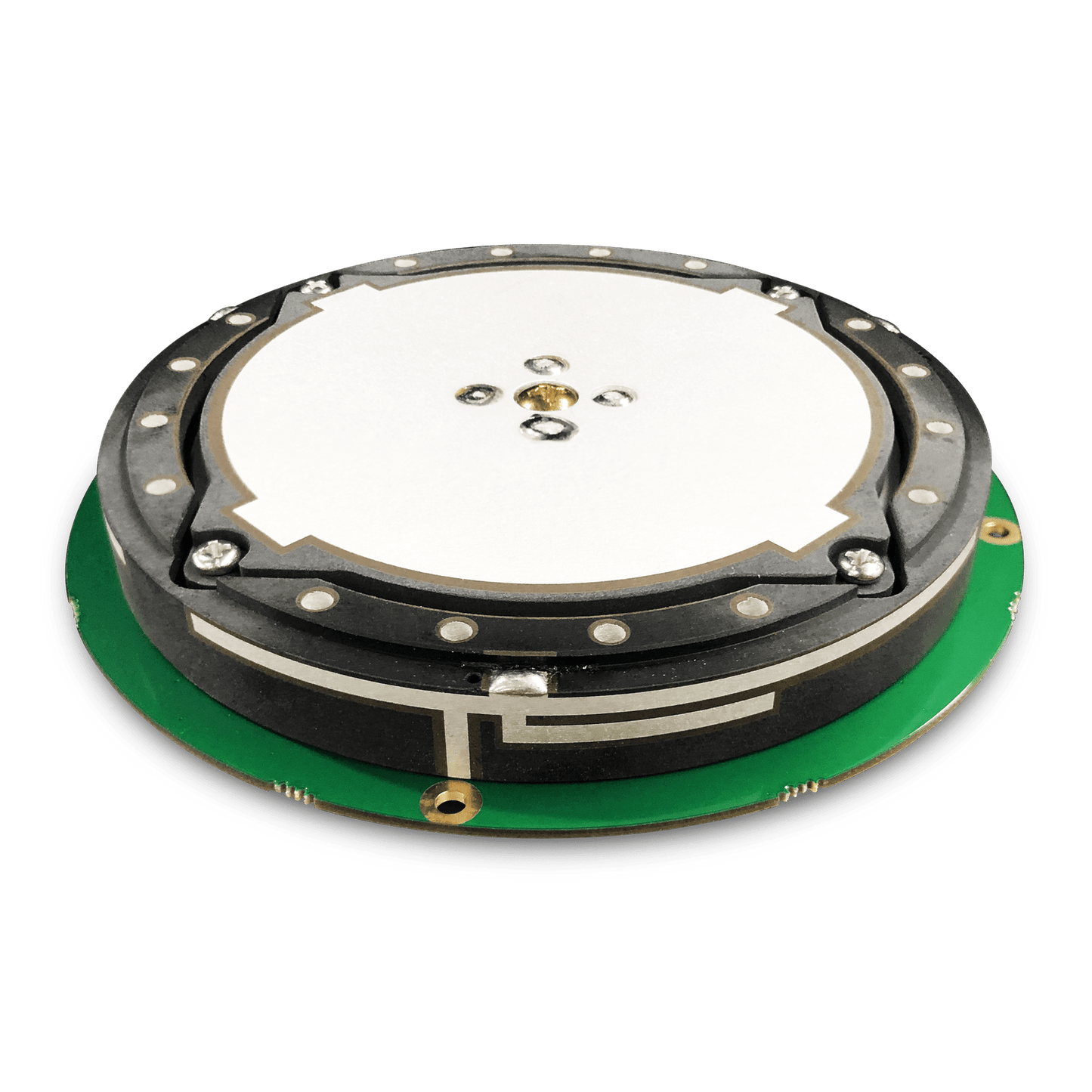

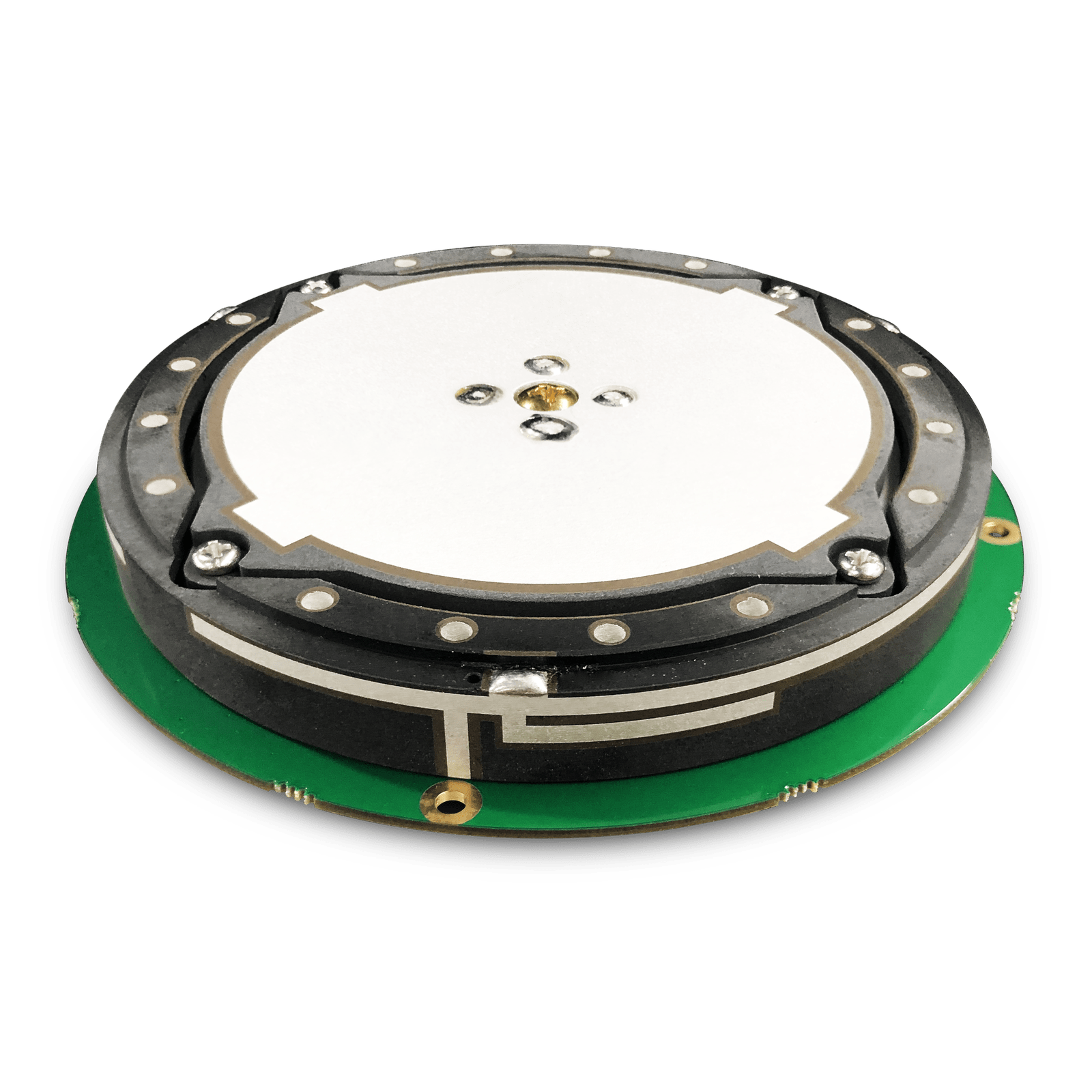

X-Survey™ OEM Antenna HX-CSX137A

Important functions

• Comprehensive GNSS support: GPS, GLONASS, Galileo, BeiDou and L-band correction services
• Highly integrated design with embedded GNSS antenna, dual 4G antennas, Wi-Fi and Bluetooth antenna
• Reliable phase center, low elevation signal tracking and high signal gain provide millimeter-precise positioning accuracy
• Excellent suppression of out-of-band interference and excellent multipath rejection
• Outstanding electromagnetic compatibility, easy to integrate

The Harxon X-Survey™ OEM antenna HX-CSX137A is a high-precision survey antenna that provides multi-constellation and multi-frequency signal reception. It is highly integrated and features dual 4G antennas, Wi-Fi and Bluetooth antennas in a compact package. This versatile antenna is ideal for geodetic surveys, oceanographic exploration, geological surveys, disaster monitoring and smart port operations.

Stable phase center for remarkable performance

The HX-CSX137A offers full support for reliable satellite signal tracking, including GPS, GLONASS, Galileo, BeiDou and L-band correction services. Multipoint injection technology keeps the phase center stable, ensuring millimeter positioning accuracy by minimizing the deviation between the phase center and geometric center.

Wide compatibility for solid reliability

This compact design combines GNSS, 4G, Wi-Fi and Bluetooth antennas, ensuring compatibility with RTK applications. The antenna layout provides excellent isolation between the embedded antennas, ensuring minimal interference.

tracking in complex environments

The antenna offers high gain performance with extremely low signal loss, enabling reliable satellite signal tracking. The wide beamwidth ensures robust signal availability in complex environments with obstacles such as treetops and buildings.

Strong immunity to interference

The advanced Low Noise Amplifier (LNA) improves signal filtering and out-of-band interference rejection, reducing electromagnetic interference and multipath effects across all GNSS frequency bands. This ensures consistent and reliable GNSS signals, even in environments with high levels of electromagnetic interference.

Compact design with low consumption

The antenna's integrated design minimizes power consumption, weight and dimensions while maintaining accuracy and reliability. With a diameter of only 111 mm, it is an ideal solution for precision applications.

parameter	details
Received signals	GPS (L1/L2/L5)
	GLONASS (L1/L2/L3)
	GALILEO (E1/E5a/E5b/E6)
	BDS (B1/B2/B3)
	QZSS (L1/L2/L5)
	IRNSS (L5)
	SBAS (L1/L5)
	L-band
	WiFi (2.4G/5.8G)
nominal impedance	50Ω
polarization	RHCP
axial ratio	≤3dB
azimuth coverage	360° (Omni-directional)
output VSWR	≤2.0
peak gain (GNSS)	1164-1300 MHz: 4.0 dBi
	1525-1612 MHz: 4.5 dBi
peak gain (WiFi)	2.4-2.5GHz: 0.5 dBi
peak gain (4G)	790-960 MHz: 0.5 dBi
	1710-2690 MHz: 0.5 dBi
phase center deviation	±2mm
LNA amplification	L2: 40±2dB
	L1: 38±2dB
noise figure	≤2dB
output VSWR	≤2.0
forward ripple	±2dB
operating voltage	+3.3 to +12VDC
operating current	≤45mA
group lead ripple	≤5ns

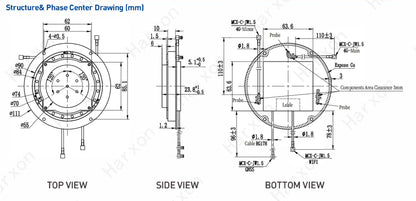

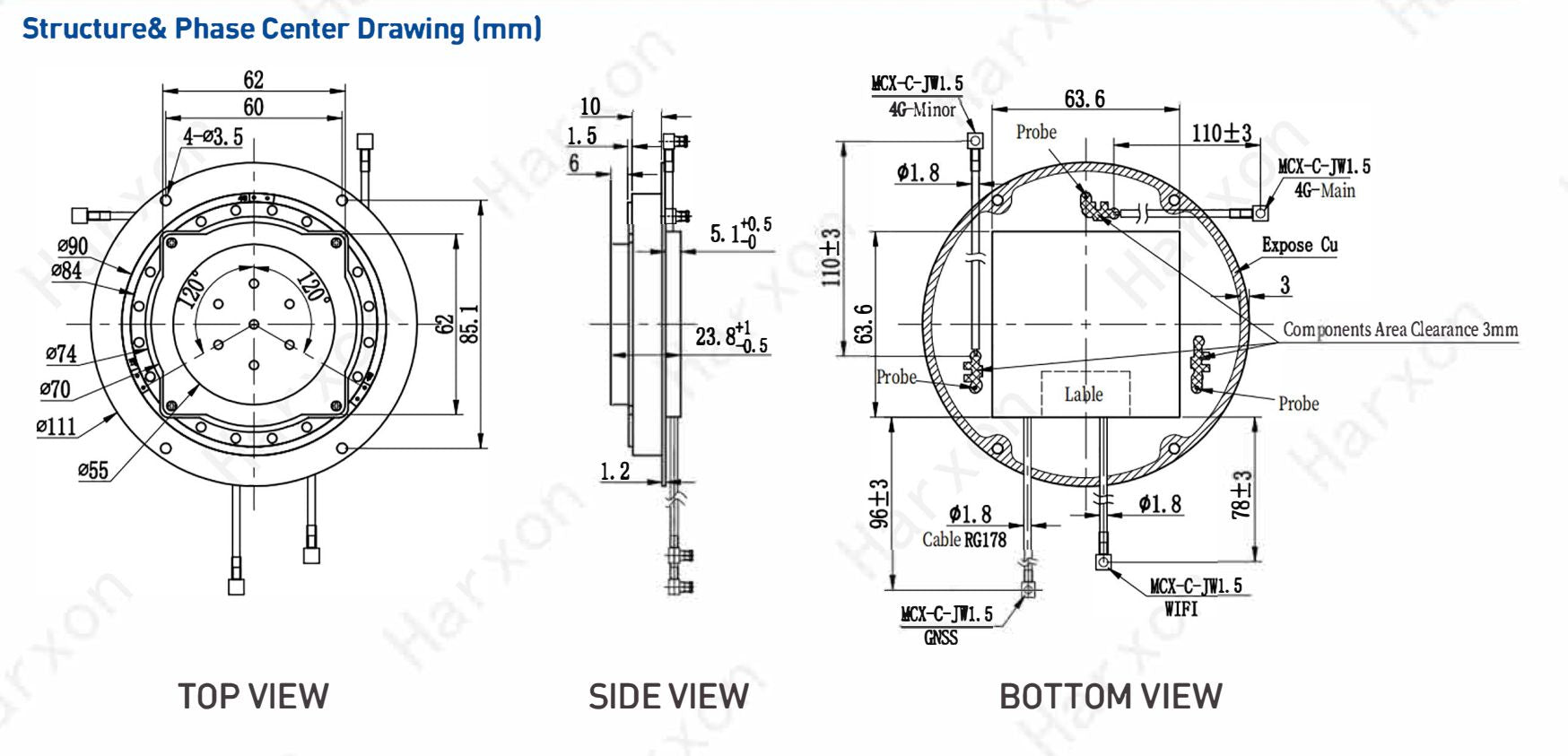

Dimensions	Ø111 x 23.8mm
Weight	≤150g
Connection	GNSS: MCX-C-JW1.5
	WiFi: MCX-C-JW1.5
	Dual 4G: MCX-C-JW1.5
fastening	4 x M3.0 screws, fixed installation
operating temperature	-45°C to +85°C
storage temperature	-55°C to +85°C
humidity	95% non-condensing
