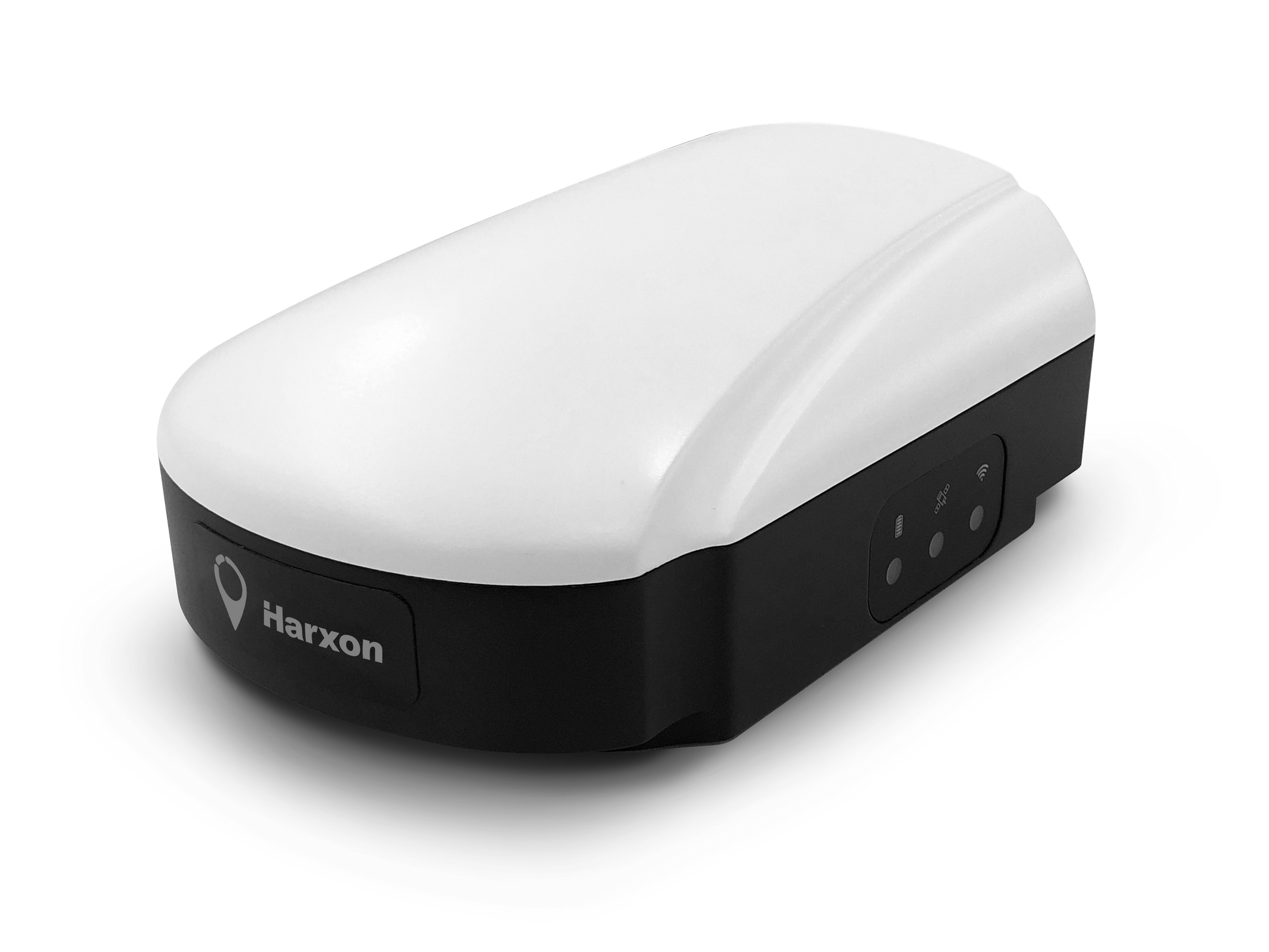

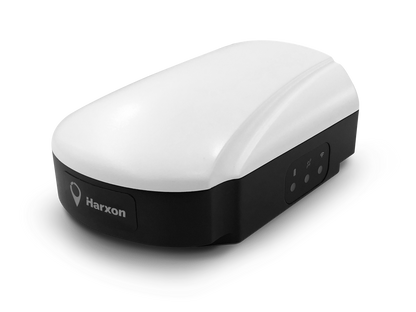

Smart Antenna HX-TS112 PRO EUNA
Smart Antenna HX-TS112 PRO EUNA
SKU: Art.-Nr.: 80.1020
exkl. MwSt | €4.792,13 inkl. MwSt.
Mengenrabatte auf Anfrage verfügbar.
Out of stock
Angebot anfragen View full details
- Description
- Data sheet
- Downloads
ULTIMATE POSITIONING ACCURACY
The Harxon Smart Antenna TS112 PRO embeds a future-ready Hexagon | NovAtel OEM GNSS module, offering precise positioning and advanced interference mitigation for space-constrained applications and challenging environments. With centimeter-level positioning utilizing TerraStar satellite-delivered correction services, the TS112 PRO ensures globally available, high-performance positioning without the need for network infrastructure. It also supports NTRIP service, enabling users to achieve ultimate centimeter-level positioning accuracy when base stations are not feasible by transmitting differential corrections via 4G networks.
COMPREHENSIVE GNSS SUPPORT
The TS112 PRO employs Harxon’s latest positioning technology with a 4-in-1 multifunctional GNSS antenna, receiving multi-frequency signals from GPS, GLONASS, GALILEO, BEIDOU, IRNSS, QZSS, SBAS, and L-Band signals through the TerraStar correction service. This comprehensive GNSS support ensures robust satellite tracking and signal continuity, even in varied terrains or environmental conditions.
GLIDE™ POSITIONING TECHNOLOGY
The TS112 PRO features Hexagon | NovAtel’s GLIDE™ technology for superior pass-to-pass accuracy down to 20 centimeters, making it suitable for applications where relative positioning is critical.
STEADYLINE® SMOOTH POSITIONING
This smart antenna also supports Hexagon | NovAtel’s STEADYLINE® technology, providing smoother steering and straighter rows by reducing positioning jumps during RTK signal outages or when the smart antenna changes positioning modes.
TERRAIN COMPENSATION FOR MAXIMUM ACCURACY
The TS112 PRO includes a terrain compensation algorithm capable of correcting deviations caused by vehicle roll and pitch on uneven grounds or slopes, increasing operational efficiency and saving costs in the field.
RICH INTERFACES FOR FLEXIBLE CONNECTIVITY
The TS112 PRO is equipped with two NMEA0183 compatible RS-232 serial ports and one NMEA2000 compatible CAN port. It also features Bluetooth wireless technology for easy configuration via tablets or other mobile devices, providing flexible corrections transmission from tablets or other devices to the smart antenna. A built-in 4G module and radio modem enhance user connectivity.
RUGGEDIZED AND DURABLE DESIGN, FLEXIBLE INSTALLATIONS AVAILABLE
The TS112 PRO features a compact, flat structure with IP67-rated housing for reliability in harsh environments, including exposure to dust, rain, splash, or sunlight. It includes a user-friendly SIM card slot on the side and offers two installation options: a built-in magnet or M4 screw mounting for off-road vehicles used in agriculture and construction.
| Parameter | Details |
| Signal Received | GPS (L1/L2/L5) |
| GLONASS (L1/L2) | |
| BDS (B1/B2) | |
| GALILEO (E1/E5a2/E5b/AltBOC) | |
| NavIC (L5) | |
| SBAS (WAAS/EGNOS/MSAS/GAGAN) | |
| QZSS (L1/L1C/L2C/L5) | |
| L-Band (Up to 3 Channels) | |
| Horizontal Position Accuracy | Single Point L1: 1.5m |
| Single Point L1/L2: 1.2m | |
| NovAtel CORRECT | SBAS 60 cm, DGPS40 cm |
| PPP: TerraStar-L: 40cm, TerraStar-C: 4cm | |
| RTK: 1cm + 1ppm | |
| Data Rate | Measurements up to 20Hz |
| Position up to 20Hz | |
| Time to First Fix | Cold Start: <50s |
| Hot Start: <35s | |
| Signal Reacquisition | L1: <0.5s |
| L2: <1.0s | |
| Velocity Accuracy | <0.055 m/s RMS |
| Roll/Pitch Accuracy | <1° RMS |
| Time Accuracy | 20ns RMS |
| Dimensions | 210 x 155 x 80 mm |
| Weight | <600g |
| Connector | 14-pin Tyco Ampseal |
| Input Voltage Range | +9VDC to +36VDC (Minimum voltage when voltage drops: 6 VDC) |
| Power Consumption | 2.5W (Typical), <10W |
| Status LEDs | Power, RTK Status, Correction Data Link |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 95% non-condensing |
| Vibration | GJB150.16-2009, MIL-STD-810 |
| Waterproof Rating | IP67 |
| Compliance | CE, FCC, REACH, RoHS |
| Accessories | M4 Screw: 4 |
| Integrated Magnetic Mount: 3 | |
| Configuration Cable: 1 | |
| Data Cable: 1 [HJ1148, optional] | |
| Antenna for Radio: 1 | |
| Screwdriver: 1 | |
| Communication Ports | RS-232 Ports: 2 |
| CAN Bus: 1 | |
| 1 PPS: 1 | |
| Ground Speed Out: 1 | |
| Event Mark Input: 1 | |
| Bluetooth: 1 | |
| LTE: 1 (Optional) | |
| Radio: 1 (Optional) | |
| Radio Specifications | Frequency Range: 410-470 MHz |
| Operating Mode: Receive | |
| Sensitivity: -115dBm @ BER 10-5, 9600bps | |
| Data Link Rate: 9600bps, 19200bps | |
| Channel Spacing: 12.5kHz |
